Electricity: Electric Potential and Potential Difference (CBSE Class 10 - Physics)

---

1. What is Electric Potential?

Definition:
Electric potential at a point in an electric field is the work done to bring a unit positive charge (1 coulomb) from infinity (where potential is zero) to that point, without any acceleration.

• Unit: Volt (V)
• Symbol: V

Formula:
If $W$ is the work done to move charge $q$, then:

$$\text{Electric Potential (V)} = \frac{\text{Work Done (W)}}{\text{Charge (q)}}$$ $$V = \frac{W}{q}$$

Elaboration:
Electric potential can be imagined as the "electric height" of a point. Just like a ball has more potential energy at the top of a hill, a point with higher electric potential can give energy to a charge. If you move a positive charge towards this point, you have to do work against the electric field—similar to lifting the ball uphill.

Important Points:

• More work needed means higher potential.
• Electric potential is always considered for a unit (1 coulomb) charge.
• It is a property of a point in an electric field, not a property of a charge.

Example 1:
Suppose 20 Joules work is done to move 4 Coulombs of charge from infinity to a point.

$$V = \frac{20}{4} = 5\ V$$

So, the electric potential at that point is 5 Volts.

Example 2:
If 1 Joule of work is needed to bring 1 Coulomb of charge, potential at that point is 1 Volt.

Example 3:
If 100 Joules work is done to bring 50 Coulombs:

$$V = \frac{100}{50} = 2\ V$$

---

2. What is Potential Difference?

Definition:
Potential difference (also called voltage) between two points is the work done in moving a unit charge from one point to another against the electric field.

Formula:

$$V = \frac{W}{q}$$

Where:

• $V$ = Potential difference (Volt)
• $W$ = Work done (Joule)
• $q$ = Charge moved (Coulomb)

Elaboration:
Potential difference is what makes electric charge flow from one point to another in a circuit. Think of it as the "push" or "pressure" that electrons feel to move.

Important Points:

• Potential difference is always between two points.
• Only the difference in potential causes current to flow.
• Devices like bulbs and fans work because of this difference.

Example 1:
A cell provides a potential difference of 1.5 V. This means each coulomb of charge gets 1.5 Joules energy moving from the cell's negative to positive terminal.

Example 2:
10 Joules work is required to move 2 Coulombs from point A to B:

$$V = \frac{10}{2} = 5\ V$$

Example 3:
In homes, the potential difference between live and neutral wires is 220 V. So, 1 Coulomb moved from neutral to live gains 220 Joules energy.

---

3. Measurement of Potential Difference — Voltmeter

Device:
A voltmeter measures the potential difference.

• Always connected in parallel across the device or points where the voltage is to be measured.
• If connected in series, it will not work properly and may damage the circuit.

Important Point:
Voltmeter has a high resistance to ensure very little current flows through it.

Example 1:
Connect a voltmeter across a bulb. If it reads 6 V, every coulomb passing the bulb loses 6 Joules (turned into light and heat).

Example 2:
Connect a voltmeter across a battery. If it shows 9 V, each coulomb of charge has gained 9 Joules crossing the battery.

Example 3:
A voltmeter connected across the terminals of an appliance (like a fan) in your house will read close to 220 V (in India).

---

4. Analogies for Fun and Easy Understanding

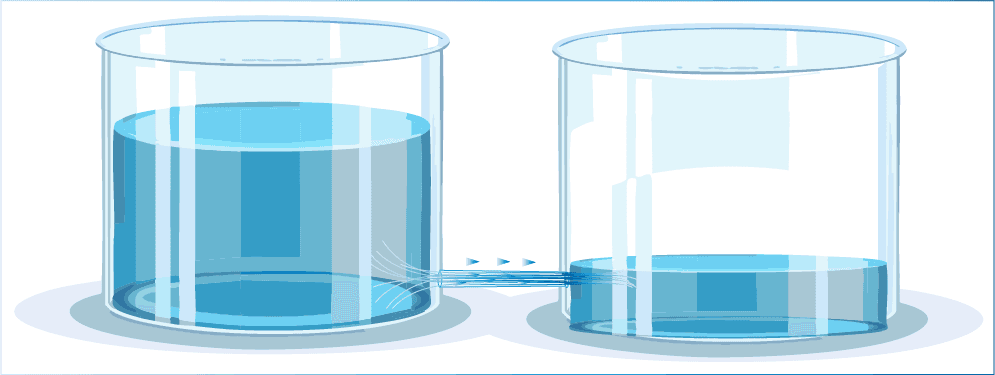

Water Tank Analogy:

Hill Analogy:

• Climbing a hill: more energy at the top, less energy at the bottom.
• Ball naturally rolls downhill, just like current flows from high potential to low potential.

---

5. Key Points to Remember

• Electric Potential is the work done to bring 1 Coulomb charge from infinity to a point.
• Potential Difference is the work done to move 1 Coulomb charge from one point to another.
• Current flows from higher potential to lower potential.
• Voltmeter measures potential difference, always in parallel.

---

6. Real-Life Examples

1. Batteries:

   • AA batteries supply 1.5 V — helps your toys and remotes work.
   • Every coulomb moving through gives off 1.5 Joule of energy.

2. Home Electricity:

   • In India, homes use 220 V potential difference.
   • Appliances receive energy to run, thanks to this potential difference.

3. Electric Fence:

   • High potential difference between fence wire and the ground.
   • Touching both creates a circuit; current gives you a shock.

---

7. Activity: Demonstrate Measurement of Potential Difference

Activity Name:
Measuring Potential Difference Across a Bulb

Material Needed:

• 1 simple electric circuit (cell, switch, connecting wires)
• 1 bulb
• 1 voltmeter

Procedure:

1. Connect the bulb in series with a cell and connecting wires.
2. Close the switch to allow current to flow.
3. Connect the voltmeter in parallel to the bulb (one wire to each side of the bulb).
4. Observe and note the voltmeter reading.

Observations:

• The voltmeter shows the potential difference across the bulb (say, 3 V).
• If you add another cell, the voltage increases (e.g., 1 cell = 1.5 V; 2 cells = 3 V), showing higher energy provided to each coulomb.

What This Shows:

• The higher the voltage, the brighter the bulb glows.
• Demonstrates how potential difference gives energy to charges in a circuit.

---

Scenario Based Questions

1. Scenario: Your friend accidentally connects a voltmeter in series with a bulb.

   • Question: What will happen, and why is this incorrect?
   • Answer: The voltmeter will not give a proper reading since it must be connected in parallel. In series, it may even prevent current from flowing due to its high resistance.

2. Scenario: You have a 1.5 V battery. You want to light up two bulbs; one is brighter than the other.

   • Question: Why is one bulb brighter?
   • Answer: It may have lower resistance, allowing more current to flow. Both experience the same potential difference, but current depends on resistance.

3. Scenario: You plug a 110 V-rated US hairdryer into an Indian 220 V socket (using a physical adapter, not a transformer!).

   • Question: What will happen and why?
   • Answer: The higher potential difference will make excessive current flow, possibly damaging the device or making it overheat or burst.

4. Scenario: You read a voltmeter in your home; it shows 0 V across a switch.

   • Question: What does this mean?
   • Answer: The switch is open, so there is no potential difference — both sides are at the same potential.

5. Scenario: While doing an activity, you measure the potential difference across a battery and across a bulb. Both read 1.5 V.

   • Question: What does this tell you about energy conversion in the circuit?
   • Answer: All the energy given by the battery is used (converted) by the bulb in the form of light and heat.

---

Summary Chart

Quantity	Definition	Unit	Instrument
Electric Potential	Work to move 1C from infinity to a point	Volt	Not commonly measured directly
Potential Difference	Work to move 1C from point A to B	Volt	Voltmeter

---

Key Reminder:

• Electric potential is like the "height," but it's the difference — the slope — that causes charges to flow.
• Only potential difference can create current in a circuit.

---

Learning about electricity is exciting, especially when you relate it to hills, water tanks, and daily life! Keep experimenting and questioning!

---
